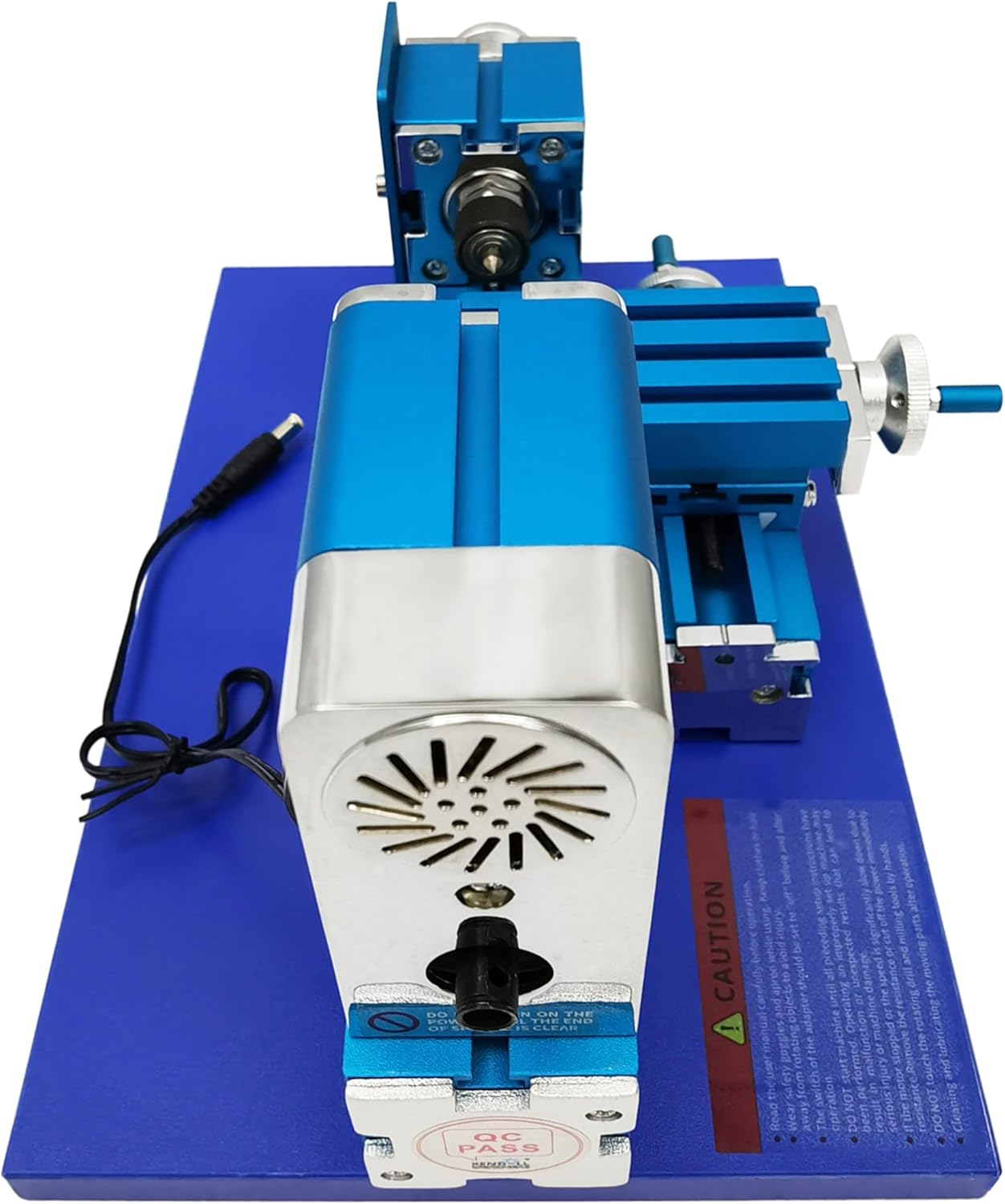

Mini Metal Bench Lathe Benchtop Miniature Metal Lathe DIY Mini Metal Wood Turning Lathe for School Woodworking Metalworking 36W

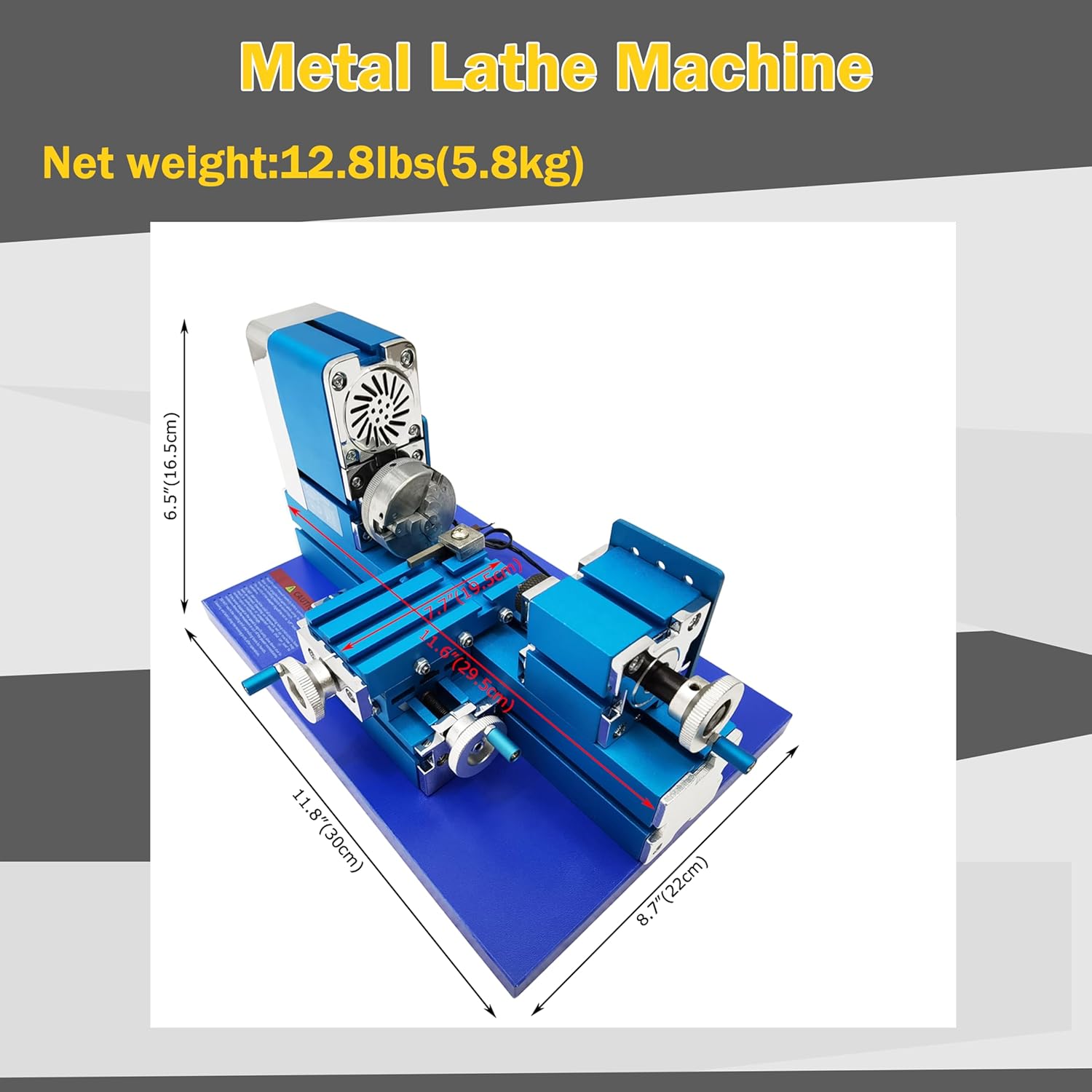

Product parameter: Input Voltage: AC100-240V Output Voltage: DC12V Direct Current: 4A Motor Rated Power: 36W Motor Speed: 20000r/min±15% Spindle Speed: 3000r/min±15% Spindle Jump: <0.004"(0.1mm) Spindle Bore: 0.3"(8mm) Large Slider Stroke (Z axis): 1.8"(45mm) Small Slider Stroke (X axis): 1.4"(35mm) Center Distance: 4.3"(110mm) (Optional: Extra long machine bed for 13"(330mm)) Center Height: 0.98"(25mm) (Optional: intermediate block for center height up to 1.8"(45mm)) Chuck Diameter: Positive claw: 0.5"(13mm) / Reverse claw: 1.8"(45mm) Maximum Processing Diameter: Positive claw: 0.08"-0.55"(2-14mm) / Reverse claw: 0.63"-1.57"(16-40mm) Maximum Processing Length: 4.3"(110mm) Turning Tool Size: 0.14"*0.14"(3.5mm*3.5mm) Handle Scale: 0.004"(0.1mm)/division Chuck & Collets Size: ф0.04"/0.08"/0.1"/0.12"/0.14"/0.16"/0.2"/0.24" ф1mm/2mm/2.5mm/3mm/3.5mm/4mm/5mm/6mm Processing Ability: It can process wood, plastic and soft metals (pure copper and pure aluminum) Package Size: 13.4"*9.1"*9.1" (34cm*23cm*23cm) Net Weight/Gross Weight: 12.8lbs(5.8kg)/13.9lbs(6.3kg)

• [Multifunctional Processing]: This all - metal mini - lathe can process a variety of materials, including soft metals such as wood, pure copper, and aluminum, as well as acrylic and plastic. With an input voltage of 100 - 240V and a high - speed motor of 20000rpm, it is a choice for diversifying craft projects.

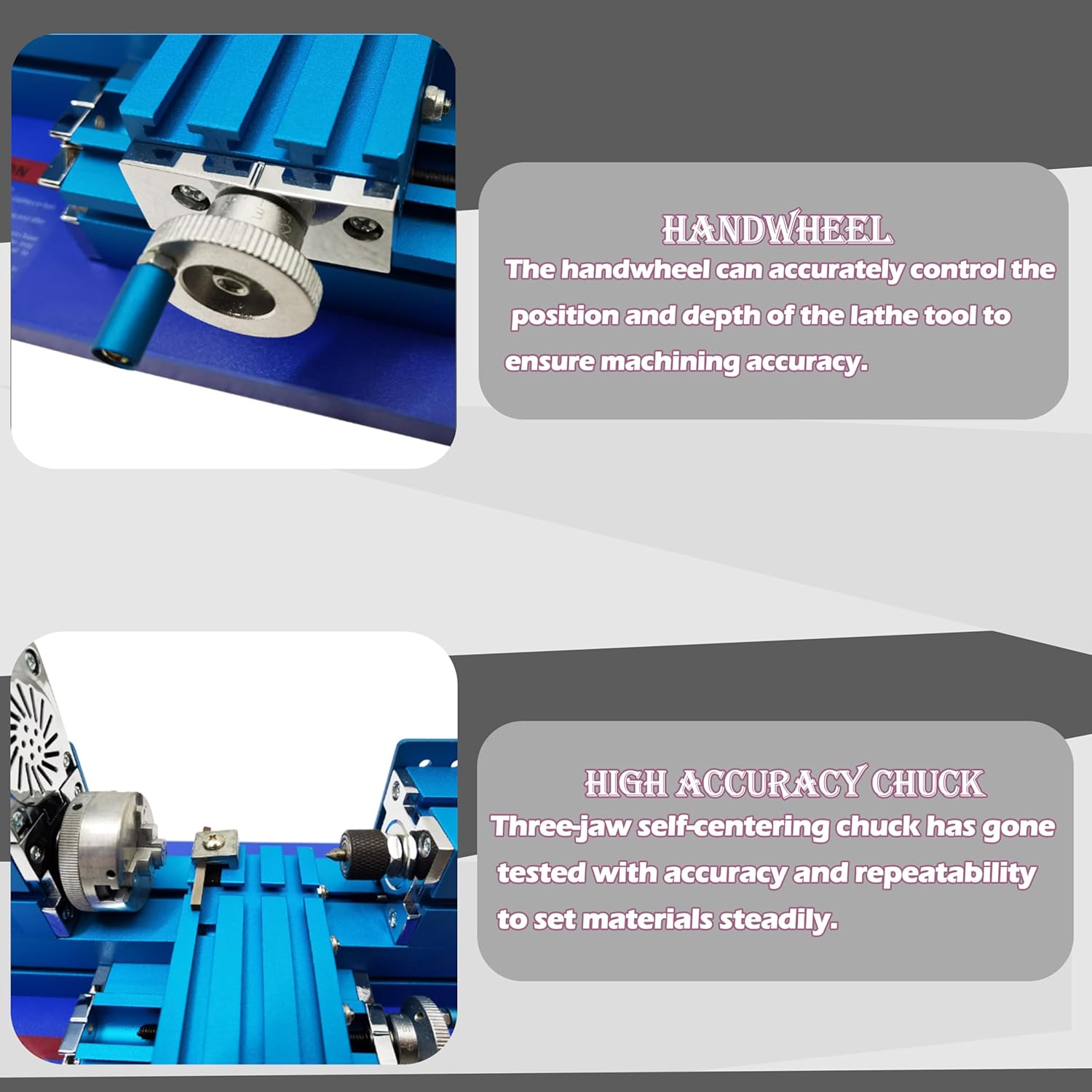

• [Precise Design]: This metal bench lathe is equipped with a high - precision three - jaw self - centering chuck and a precision handwheel, which can ensure stable material clamping and precise control of the cutting tool. The spindle run - out is <0.004" (0.1mm), the spindle bore diameter is 0.3" (8mm), the travel of the large slide (Z - axis) is 1.8" (45mm), and the travel of the small slide (X - axis) is 1.4" (35mm).
• [Safe and Portable]: This lathe is powered by a 12V safe DC transformer and has no plastic parts, ensuring stability and durability. It is compact and lightweight, making it easy to carry. It is suitable for places with high requirements for safety and mobility, such as schools, youth activity centers, or home workshops.
• [Efficient Management]: The headstock of the lathe is equipped with cooling holes to ensure that the spindle runs smoothly even during long - term use. The tailstock can provide reliable support for longer workpieces and can be used with centers and drills for hole machining, ensuring stable performance.
• [Adjustable Operation]:This lathe has adjustable functions such as center height (an intermediate block can be optionally equipped to increase the height) and variable jaw clamping range, which can meet different processing requirements. The easy - to - read handle scales and intuitive operation make it accessible to both novice and experienced users, simplifying the processing process.
