MAPLE ACE HC207-20, NA207-20 Insert Bearing 1-1/4" Bore, Spherical OD with Eccentric Locking Collar and Lubrication Hole

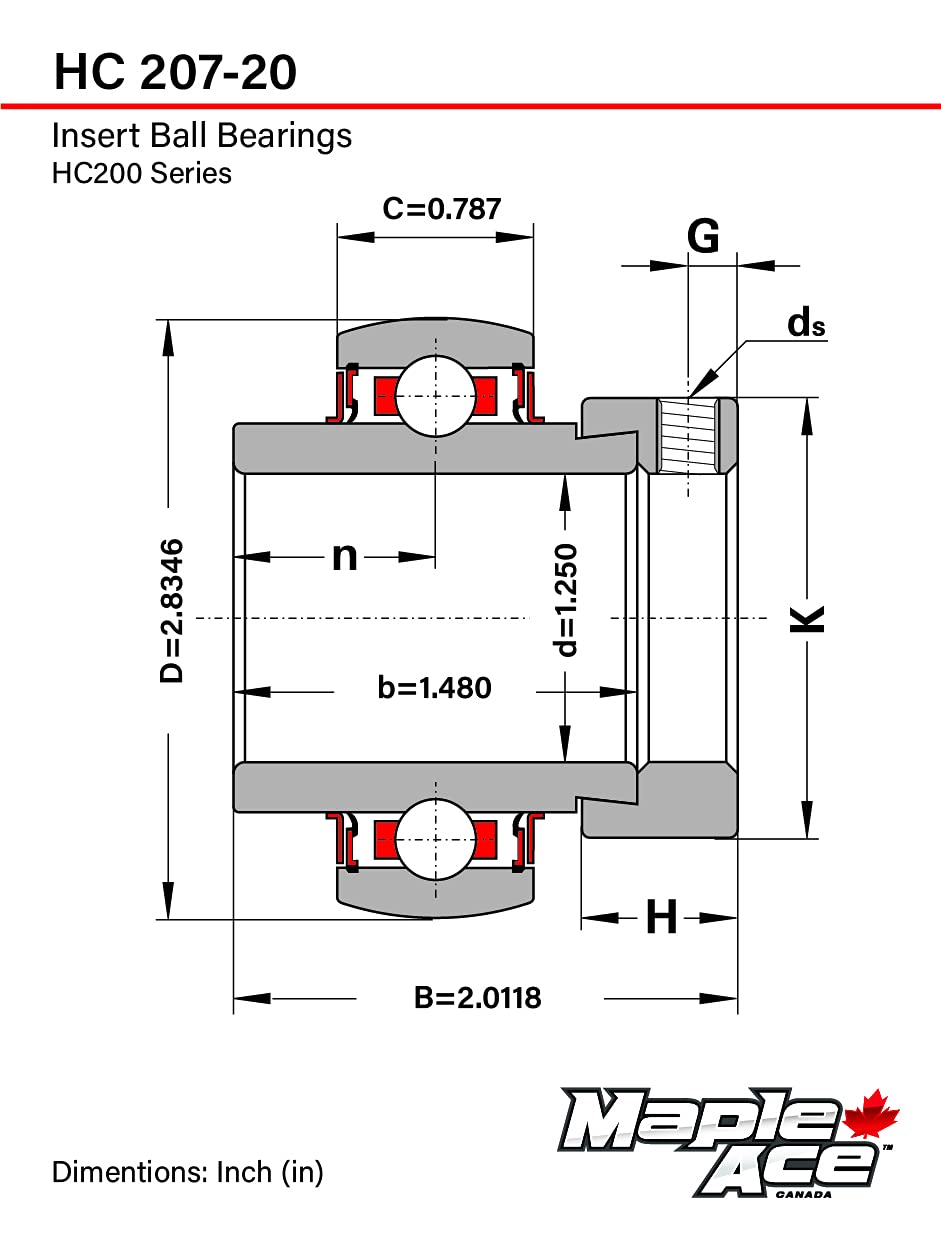

This INSERT BEARING has a Spherical Surface. Triple-Lip Seal: Unmatched protection in highly contaminated environments. Ensures significant bearing lifespan in severe dust, sand, slurry, and water. Bearing is Pre-Lubricated with High-Quality Grease ideal for use in High and Low-temperature settings. Has Groove and Oil Hole to Relubricate. Has Eccentric Locking Collar (Self-Locking Collar). - Specification: Item HC207-20 G, Series HC200, Outer ring type Spherical, Bore Diameter Metric 31.750 mm, Bore Diameter Inch 1-1/4 in, Outside Diameter Matric 72.00 mm, Outside Diameter Inch 2.8346 in, Width with Collar Matric 51.10 mm, Width with Collar Inch 2.010 in, Width Inner Ring Matric 37.60 mm, Width Inner Ring Inch 1.480 in, Width Outer Ring Matric 19.00 mm, Width Outer Ring Inch 0.748 in, Dynamic Load Rating Cr 25500 N, Static Load Rating Cor 15300 N, Limiting Speed 5300 r/min, Clearance Normal, Closures Shield on both sides, Sealing type L3- Triple Lip Labyrinth Seal, Lubrication Type Grease Shell RL2, Lubrication Temperature -20°C to +160°C, Relubrication feature With, Rolling Element Indicator Ball, Material Gcr15, Locking Type Eccentric Locking, Collar Weight 0.610 KG.

• Exclusively Produced by High Standard Factories
• Ideal for Replacement and OEM Applications
• Specializing in the Exclusive Production of Bearings with High Performance, High Speed, Less Vibration, Low Noise, and Long Life
• DESIGNED FOR HEAVY-DUTY AND COMPATIBLE WITH EXTREME CLIMATE
• 100% SATISFACTION GUARANTEED
