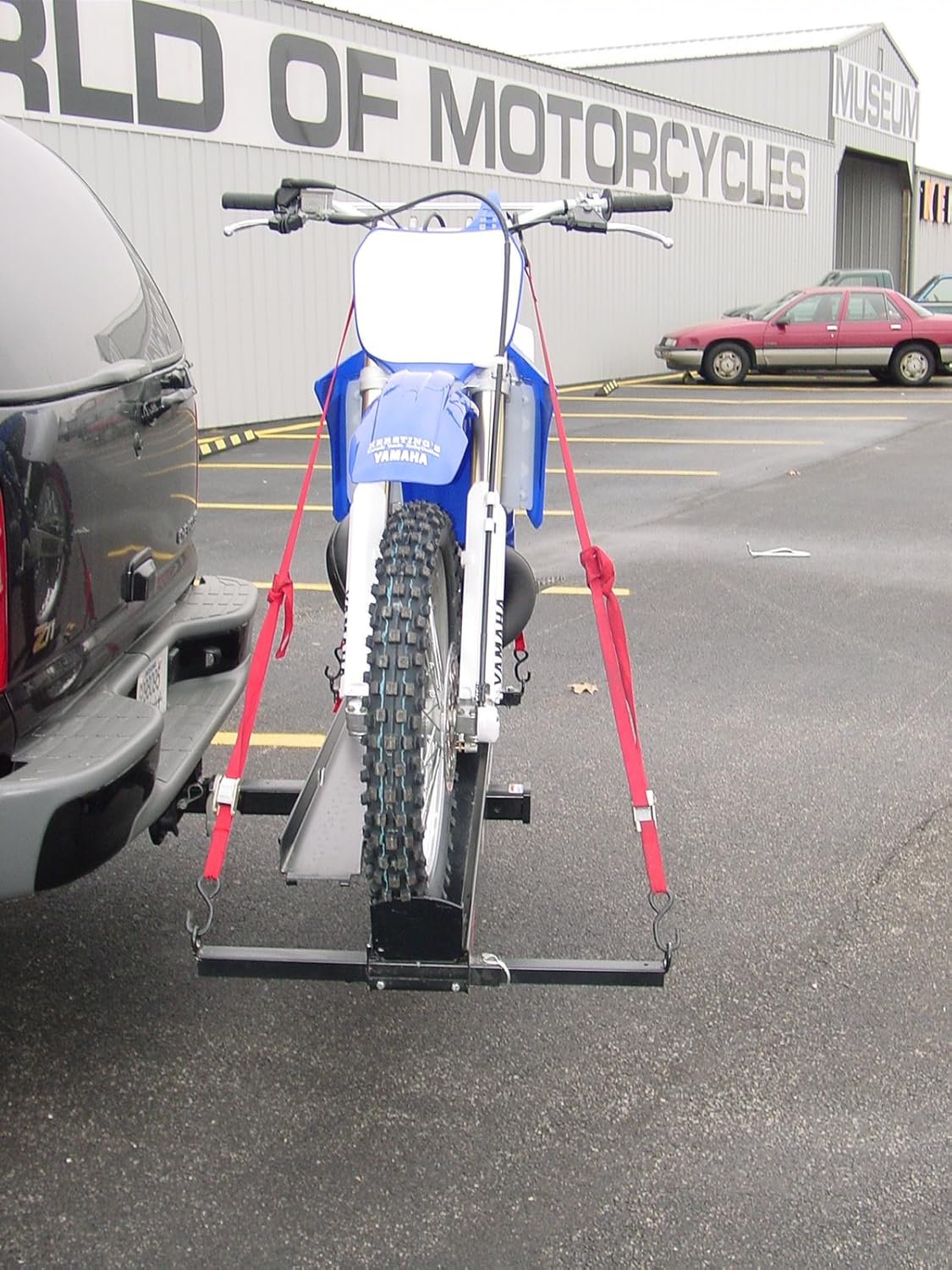

Dirt Bike Hitch Carrier With Ramp

Specifications Model Number: VH-55 RO Description: Single motorcycle carrier with ramp Approx. Shipping Wt.: 94 lbs. Carrying Capacity: 500 lbs. Length of carrier rail: 71.5 in. Width of carrier rail: 6.375 in. Pin to center of rail: 21.5 in. Length of ramp: 57.5 in. Width of ramp: 5.5 in Features Fits any class III or IV hitch Powder coat finish Easily stores away Boxed for UPS shipping Reversible Rails What's Included Anti-tilt lock bracket 24 in. main tube Four retractable tie down bars One 6.375 in. x 71.5 in. carrier track One wheel stop Two reflectors One ramp One snap pin CARRIER LIMITATIONS The VH-55 carrier is designed to safely carry 500 lbs. The motorcycle ramp limits bikes to tires under 5.5 in. Helix, Reflex, Majestic, Gold Wing, and Burgman and similar scooters cannot be carried by a VH-55. Due to their length they cannot be weight centered on the rail. A VH-SPORT carrier is needed instead but further restrictions(weight/size) may apply. Calculator Use the Minimum Ground Clearance Chart to determine the minimum ground clearance required to properly load your motorcycle or scooter onto a VH-55 or VH-55 DM carrier when using a VH-55 ramp. HITCH LIMITATIONS Most Class III hitches are rated for 500 lbs. Most Class IV hitches are rated for 1000 lbs. Low Hitch: The VersaHaul main tube extends out of the hitch at the same level. Hitches low to the ground will not work properly. Recessed Hitches will shorten the length of the carrier tube. For Solutions see our Risers and Extenders on the accessories page. VEHICLE LIMITATIONS Your hauling weight may be limited by your vehicle's capacity to carry a load. Click here to find the Carrying Capacity of your vehicle. TOWING LIMITATIONS The VH-55 has a Class III hitch on the end of the carrier. It is limited to light-duty applications. The max towing weight, regardless of your vehicle, is 3000 lbs.

• Transport a dirt bike or motorcycle using a vehicle hitch receiver, includes loading ramp
• For 2" Class III/IV hitch receivers only, 500 lb. maximum capacity
• (4) Eyelet tie-down points for securing the dirt bike or motorcycle
• Integrated hitch tube is rated at 1/3 the vehicle hitch towing capacity for small trailers - Do not
• Heavy duty steel construction with a black paint finish
