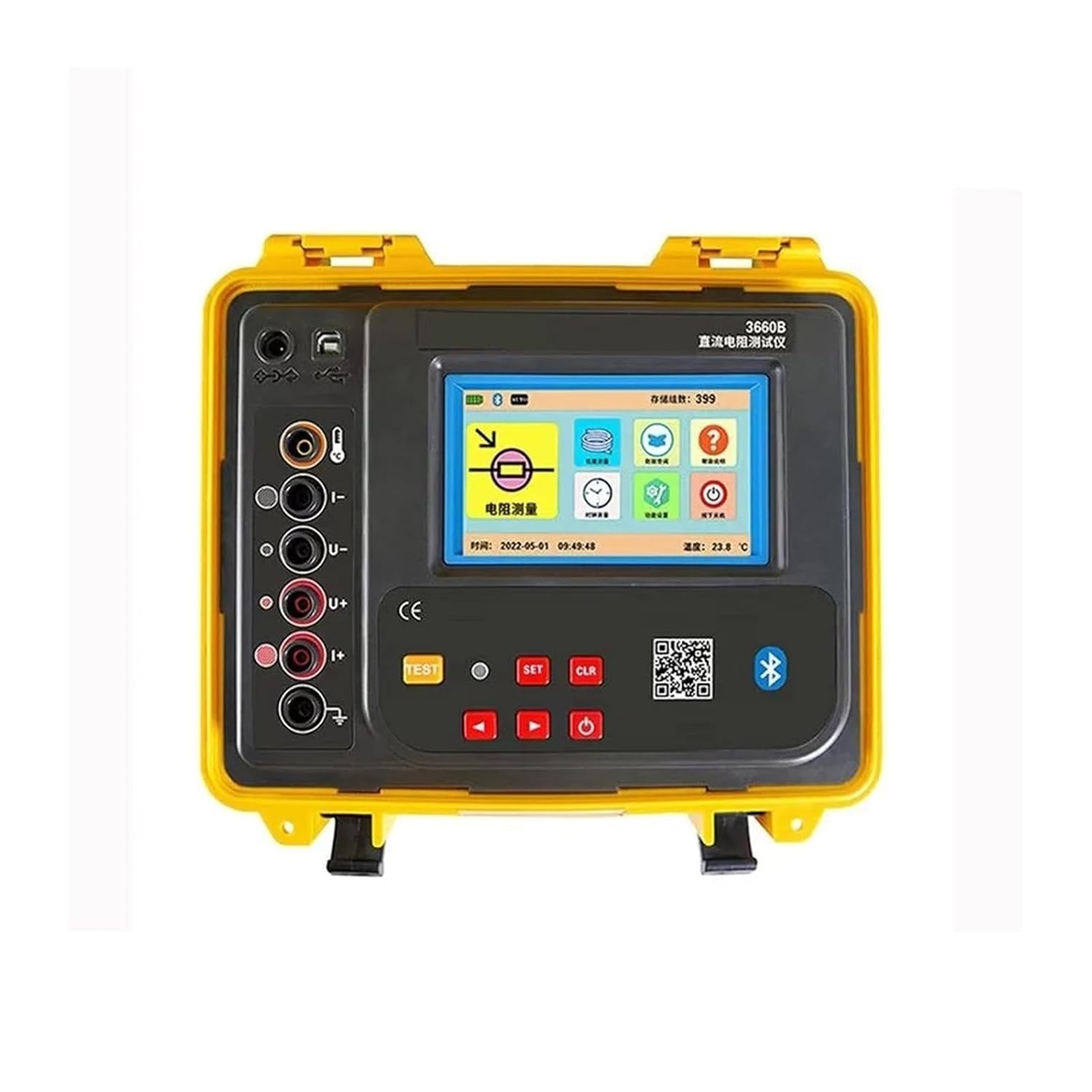

Capacitance Meters, ETCR3660 ETCR3670 Precision Transformer Four Wire Milliohmmeter DC Resistance Tester Current 10A 20A 50kΩ Ohm Meter(ETCR3670 10A 50KOhm)

Product Introduction：ETCR3670/ETCR3660Transformer DC Resistance Tester is used to quickly measure the DC resistance of various transformer windings. Semi-fnished products and hed product factory test, installation, handover test and preventive test of the power department in transformer manufacturing are mandatory test items, and the tester can effectively find the material selection, welding, loose connection parts, lack of shares, broken wires and other manufacturing defects and hidden dangers after operation of transformer windings.ETCR3670 Transformer DC Resistance Tester consist of host, test line, temperature sensor and USB communication line, etc. The instrument adopt with the processor technology and precision 4-wire method to test, accurate and reliable.The instrument with two power supply mode AC and large capacity lithium battery, two measurement mode automatic measurement and manual measurement. The instrument has the function of converting resistance at 75 to compensate for the temperature and material of the test product.The instrument adopt with 5 inch full-color high definition touch screen with backlight adjustment function, which is clearly visible under strong light, also equipped with waterproof protective box, which is anti-collision, anti-fall, waterproof, strong, safe and . With built-in printer, Bluetooth communication, and USB interface.The instrument has the functions of automatic discharge, alarm, clock and automatic shutdown, etc, which is the tester for quickly measure the DC resistance of the transformer.Main Functions：1.Two power supply mode AC and large capacity lithium battery, meet the requirement of user on various occasions.(ETCR3670Available)2.Two measurement modes, automatic measurement mode: the test current can be automatically selected according to the load. Manual measurement mode: There are 7 gears to test current3.Test current gears: AUTO, 10A, 5A, 1A, 100mA, 10mA, 1mA4.Max. output voltage is 24V, the max. test current is 10A, fast-speed testing, and it can be applied to transformer measurement.5.With discharge function, which is automatically discharged after the test, and the discharge instructions are clear to avoid misoperation.6.The function of converting resistance at 75 to compensate for the temperature and material of the test product7.Alarm function, can setting the resistance alarm threshold.8.Memory: data storage 600 groups9.5 inch true-color touch screen10.Built-in printer11.Bluetooth communication function12.USB communication interfaceETCR3670/ETCR3660Technical ParameterPower SupplyBuilt-inLithium BatteryDC 22.2V 5200mAhDisplay Mode5 inch true-color LCD touch screen, resolution 480×854Backlight AdjustmentDrag the slider to adjust the brightnessMeasurement Range1.0u~50.00kTest Current & Accuracy2000u5000K AUTO2000u2000m 10A 02FS1000m2000m 5A 05FS1000m~2.000 1A 1%FS1.00~20.00 >100mAConstant pressure method1%FS10.0~200.0 >10mAConstant pressure method1%FS100~50.00k >1mA Constant pressure method1%FSMax. Resolution0.1uTest Current GearAUTO, 10A, 5A, 1A, 100mA, 10mA, 1mAOutput Voltage24V MAXMeasurement MethodPrecision four-wire method, 2 A/D simultaneous detectionMeasurement ModeAutomatic, manualWire Length TestL: 9999mStandard Wire LengthStandard wire length setting range: 1m~200mTemperature Measurement Range-55~125Temperature Measurement Accuracy±0.5Test TimeSampling AD rate 1 second/timeAlarm SettingSetting alarm threshold range:1m~2500,the alarm function is not activated at 0Alarm PromptWhen the test value exceed the set value of the alarm, the buzzer will sound and the alarm will promptOverflow DisplayOverrange overflow function: digital 999999 overrun displayCharging IndicationThe indicator light on the charger light up red when charging, and green when fully chargedLow Voltage IndicationWhen the battery voltage is lower than DC 22.2V, the battery level symbol is displayed in red, reminding charging in time.Memory600 groups(no data will be lost if the battery is powered down or replaced)Data HoldAutomatically keep displaying the tested result after each testClock Function24-hour clock, showing hours, minutes, and secondsCalculation Of Reduced ResistanceConvert based on the temperature and material of the tested product.Discharge FunctionAutomatic discharge after testing, with clear discharge instruction to avoid misoperationAutomatic ShutdownAfter setting the automatic shutdown, it will automatically shut down after 15 minutes of no operationHost Size280mm×260mm×160mmWeightThe instrument: About 3250g (include battery); total weight: about 6.4kg (include accessory)Working Temperature & Humidity10

• High precision milliohmmeter for accurate resistance measurements up to 50kΩ
• Supports current testing of 10A and 20A, for transformer applications
• User-friendly interface with clear digital display for easy readings
• design for reliable performance in various electrical testing environments
• Compatible with ETCR3660 and ETCR3670 models for versatile usage
